dr.faramroze

[Tutorial] - How To Enable OMH SIM On Sprint HTC One

Recommended Posts

Will gsm still work after this?

As in does this radio support gsm?

Great work Faram bhai. True genius

  • Like 1

Share this post


Link to post
Share on other sites

Will gsm still work after this?

As in does this radio support gsm?

Great work Faram bhai. True genius

Yes it will

  • Like 1

Share this post


Link to post
Share on other sites

The same procedure works for Kitkat ?

Share this post


Link to post
Share on other sites

I warn every one to be careful when you want to go back to factory state once this procedure is completed since this step involves S-Off(for that matter any one who performed S-Off on their HTC devices for various reasons). Once S-Off there are more chances to brick the HTC devices if you are not careful. If you are not careful & do the factory reset with out performing S-ON, you can brick your devices.

Edited by st_7
  • Like 1

Share this post


Link to post
Share on other sites

Worked...aflatoon

thank you,

thank you

Share this post


Link to post
Share on other sites

Working!!!! Excellent Tutorial.Thanks

Share this post


Link to post
Share on other sites

Worked...aflatoon

thank you,

thank you

Working!!!! Excellent Tutorial.Thanks

Tried on old sim and cut it into micro to use evdo or used the new pre cut micro sim of reliance? I know it works on old sim with evdo but not sure of new sims.

  • Like 1

Share this post


Link to post
Share on other sites

For Reliance, cut and used my old SIM. For MTS, got a new smartphone SIM and had to cut it. Both working fine and no settings needed other than set the phone mode to 'automatic'. Not sure about the new micro Sims.

Share this post


Link to post
Share on other sites

For this process, HTC One Sprint M7WLS should be rooted and S-off. Google it for the procedure till here.

1. Open your favourite CDMA software and make the RUIM config as RUIM if avail

2. Boot the phone into fastboot and type the following commands

a. fastboot oem rebootRUU

b. fastboot flash zip CT3G_radio.zip

c. fastboot reboot

Link for the radio

2.

Your phone will detect CDMA SIM network upon reboot.

i am trying ot for the ONE MAX - Sprint.

but i am getting error... can you resolve..

or is there any other zip file for CDMA working on ONE MAX - SPrint.

Currently using GSM on the ONE MAX. ---->Rooted. S-OFF

getting following error

C:\Users\Notebook\Desktop\fastboot>fastboot reboot

rebooting...

finished. total time: 0.044s

C:\Users\Notebook\Desktop\fastboot>to_boo

'to_boo' is not recognized as an internal or external command,

operable program or batch file.

C:\Users\Notebook\Desktop\fastboot>to_bootloader.bat

C:\Users\Notebook\Desktop\fastboot>adb reboot-bootloader

C:\Users\Notebook\Desktop\fastboot>fastboot oem rebootRUU

...

(bootloader) Start Verify: 0

OKAY [ 0.049s]

finished. total time: 0.051s

C:\Users\Notebook\Desktop\fastboot>fastboot flash zip CT3G_radio.zip

target reported max download size of 1554694144 bytes

sending 'zip' (18824 KB)...

OKAY [ 2.367s]

writing 'zip'...

(bootloader) zip header checking...

(bootloader) zip info parsing...

(bootloader) checking model ID...

FAILED (remote: 41 model id check fail)

finished. total time: 5.327s

C:\Users\Notebook\Desktop\fastboot>

Share this post


Link to post
Share on other sites

For this process, HTC One Sprint M7WLS should be rooted and S-off. Google it for the procedure till here.

1. Open your favourite CDMA software and make the RUIM config as RUIM if avail

2. Boot the phone into fastboot and type the following commands

a. fastboot oem rebootRUU

b. fastboot flash zip CT3G_radio.zip

c. fastboot reboot

Link for the radio https://drive.google.com/file/d/0BylQ6RZ2mIP_UjBkcWd3T1lITFk/edit?usp=sharing

2. http://www.4shared.com/zip/Wh-_Fvsuce/CT3G_radio.html

Your phone will detect CDMA SIM network upon reboot.

Works fine for HTC ONE MAX - Sprint ...

only need to change the model id

modelid: 0P3P70000

No other changes are to made.

& save... other things are in OP

Follow the steps in OP

  • Like 1

Share this post


Link to post
Share on other sites

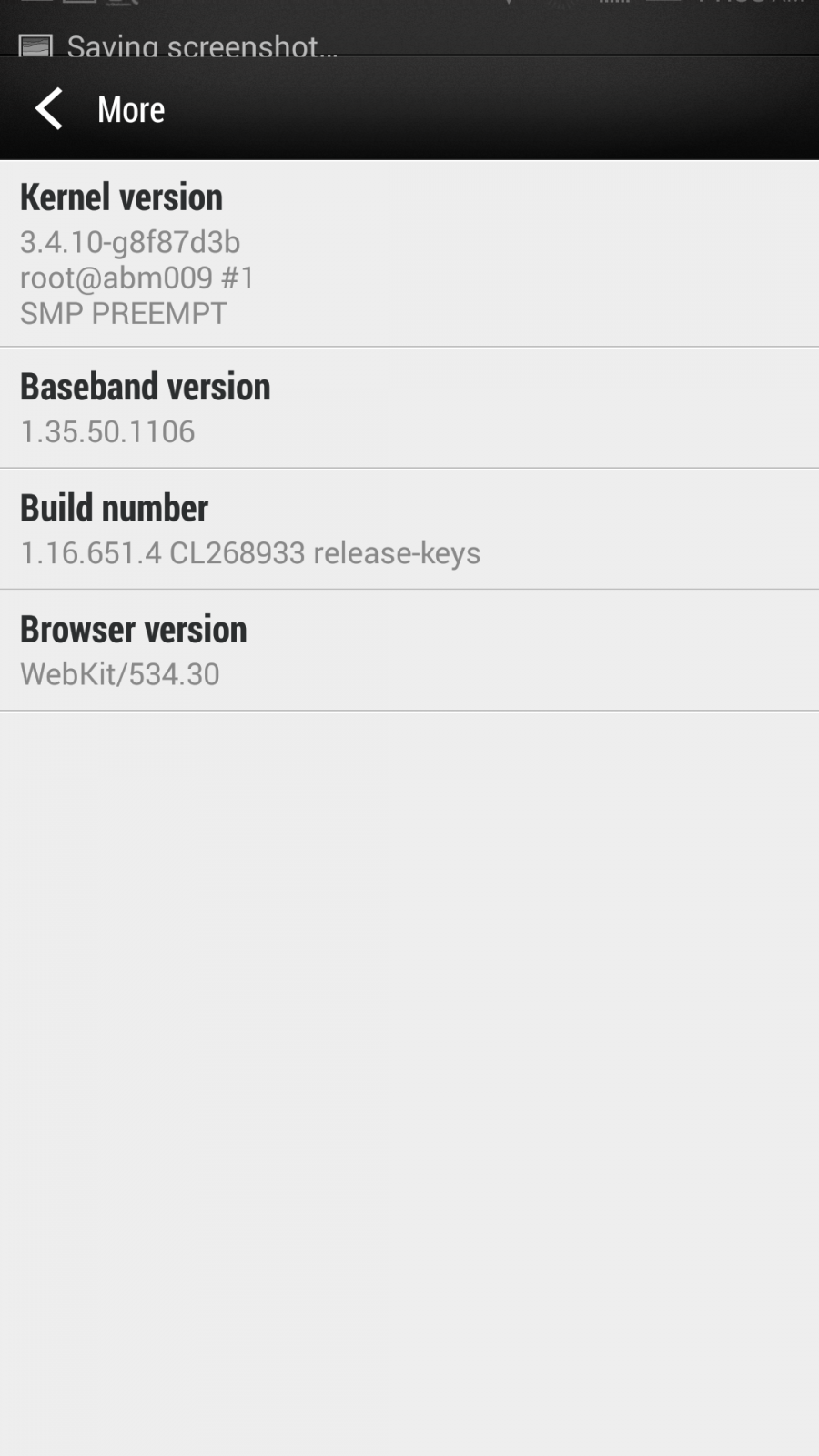

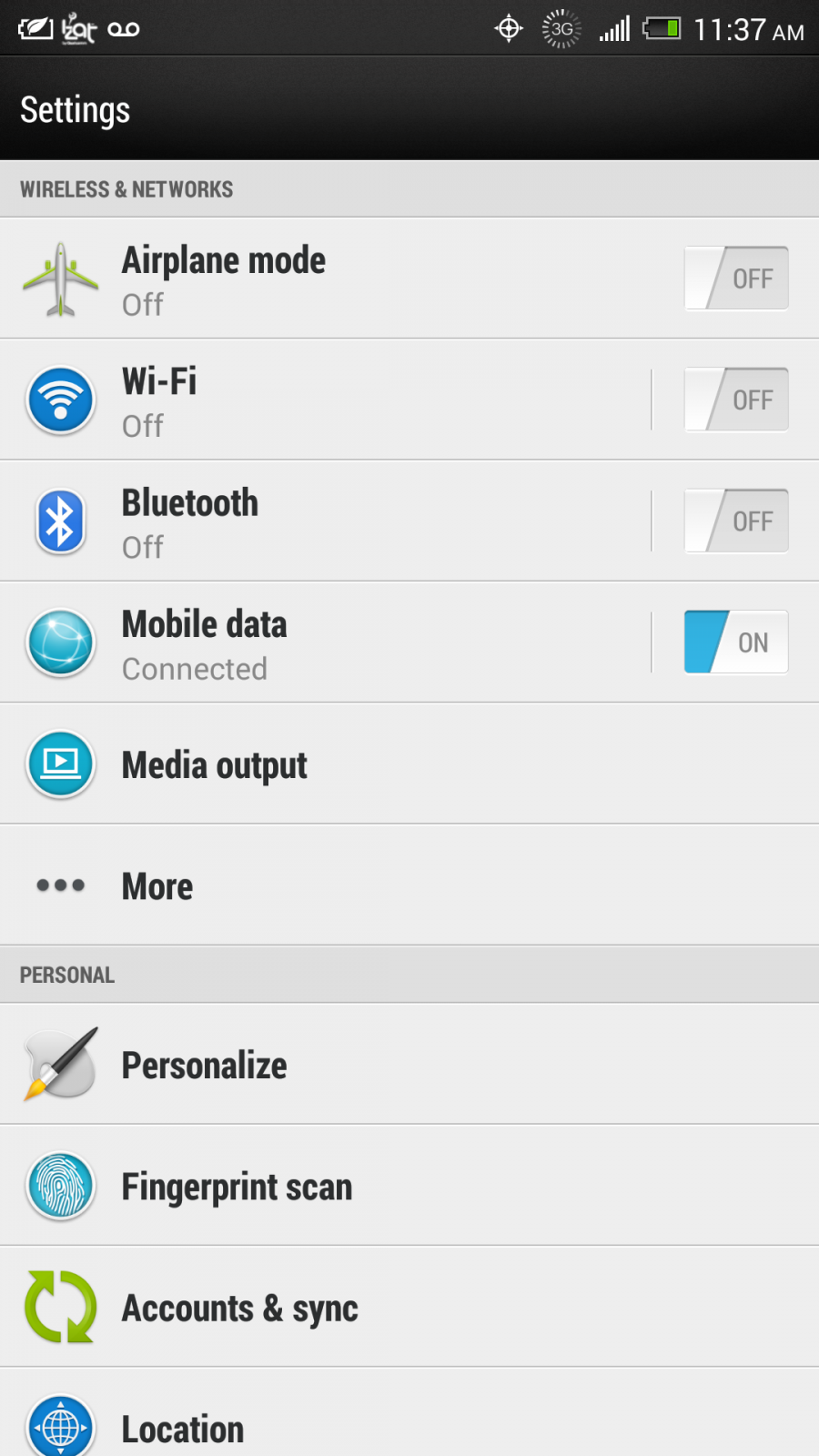

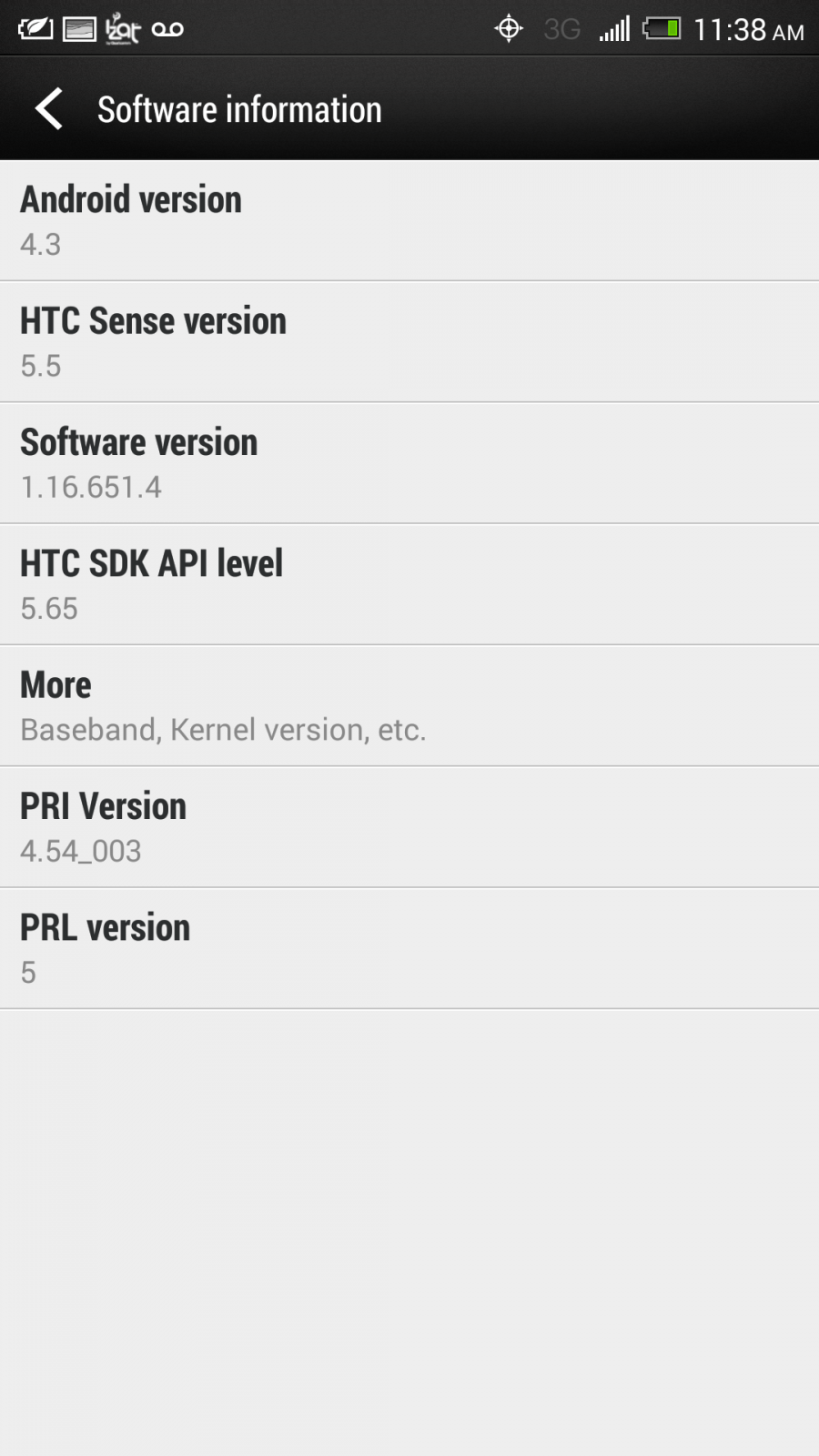

This Radio is not required for HTC One Max RUIM cdma , its working on official radio.

post-79633-0-07115900-1397456440_thumb.p

post-79633-0-94001200-1397456468_thumb.p

post-79633-0-42450400-1397456596_thumb.p

Share this post


Link to post
Share on other sites

Can anyone tell me proper steps to use Reliance Cdma Omh sim.

i did following steps :

1) Unlocked Bootloader

2)Rooted

3)S-Off

Now what steps to do to use cdma omh sim with data..

Help will be highly appretiated..Thanks

Share this post


Link to post
Share on other sites

Look at the first post , instructions are clear

Sent by Moto G on Reliance CDMA

Share this post


Link to post
Share on other sites

Can anyone tell me proper steps to use Reliance Cdma Omh sim.

i did following steps :

1) Unlocked Bootloader

2)Rooted

3)S-Off

Now what steps to do to use cdma omh sim with data..

Help will be highly appretiated..Thanks

Dhaval bhai just make ruim from dfs after finding spc.

Sent from my SCH-I200 using Tapatalk 2

Share this post


Link to post
Share on other sites

Thanks. The radio did the magic. Tested on 4.1.

BTW any chance for 4.4.2 OMH?

Share this post


Link to post
Share on other sites

i hv tested on 4.3 and it works..

  • Like 1

Share this post


Link to post
Share on other sites

Thats great. Anyone tried the radio on 4.4.2?

Share this post


Link to post
Share on other sites

Hi Guys,

Does anyone have idea if the Verizon HTC ONE works on CDMA OMH with data out of the box or some tinkering has to be done.

Share this post


Link to post
Share on other sites

I have tested before 2-3 months Verizon White HTC ONE 4.3 out of the box, NOT worked on OMH.

Share this post


Link to post
Share on other sites

Verizon htc one on omh will not work.make it on nv mode.

Sent from my SCH-I200 using Tapatalk 2

Share this post


Link to post
Share on other sites

For this process, HTC One Sprint M7WLS should be rooted and S-off. Google it for the procedure till here.

1. Open your favourite CDMA software and make the RUIM config as RUIM if avail

2. Boot the phone into fastboot and type the following commands

a. fastboot oem rebootRUU

b. fastboot flash zip CT3G_radio.zip

c. fastboot reboot

Link for the radio https://drive.google.com/file/d/0BylQ6RZ2mIP_UjBkcWd3T1lITFk/edit?usp=sharing

2. http://www.4shared.com/zip/Wh-_Fvsuce/CT3G_radio.html

Your phone will detect CDMA SIM network upon reboot.

Works fine for HTC ONE MAX - Sprint ...

only need to change the model id

modelid: 0P3P70000

No other changes are to made.

& save... other things are in OP

Follow the steps in OP

Can you please guide me how to change modelid or suggest me a link for the same

thanks & regards

Share this post


Link to post
Share on other sites

UPDATE: I tried this radio on 4.4.2. It reads the RUIM signal fine but there is absolutely no voice during making or receiving calls. Didnt try it on 4.3 yet. Can anyone else confirm this?

Also on 4.1, the camera doesnt seems to focus at all. anyone else have this issue?

Share this post


Link to post
Share on other sites
